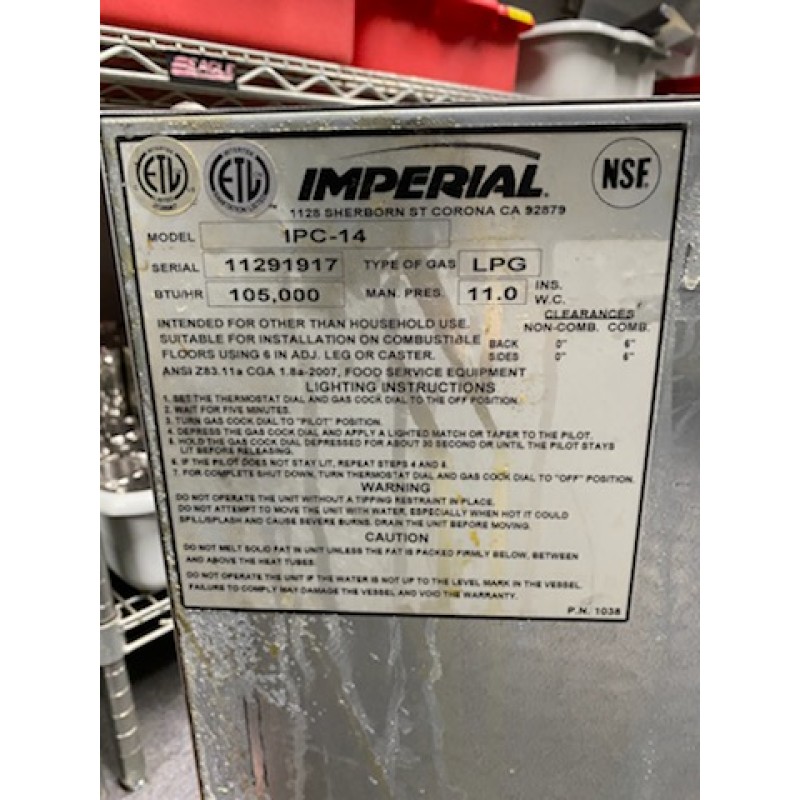

| Model number | | IPC-14 |
| Power type | | LP gas |
| Manifold pressure | | LPG: 11.0 |
| Total BTU/hr. | | 105,000 (31 KW) |
| Installation type | | Floor model |
|  |
|
| | |
| Burner style | | Tube fired located inside cook pot |
| Burner material | | Heavy gauge metal, built-in deflector system |
| Baffle system | | Yes |
| Number of burners | | 3 |
| 100% Safety pilot | | Yes |
| |
|
| Material | | 16 gauge 317 alloy stainless steel |
| Water capacity | | 12 Gal. (45 L) |
| Cooking area | | 14" x 18" (356 x 457 mm) |
| Robotic welding | | Yes |
| Thermostat | | Snap acting, 200° F - 400° F (93° C - 204° C) |
| Starch removal system | | Water wash across entire water surface |
| Foam reduction | | Water wash |
| Basket Screen | | Perforated stainless steel |
| Bottom drain | | Recessed, 1-1/4" (32 mm) full port |
| |
|
| Wrap material | | Stainless steel, except back |
| Basket hanger | | Stainless steel |
| Door | | Stainless steel, double panel |
| Dimensions | | 15-1/2" w x 35-3/8" d x 47-1/8" h (394 x 898 x 1,197 mm) |
| Casters | | 6" (152 mm) 2 with brakes |
